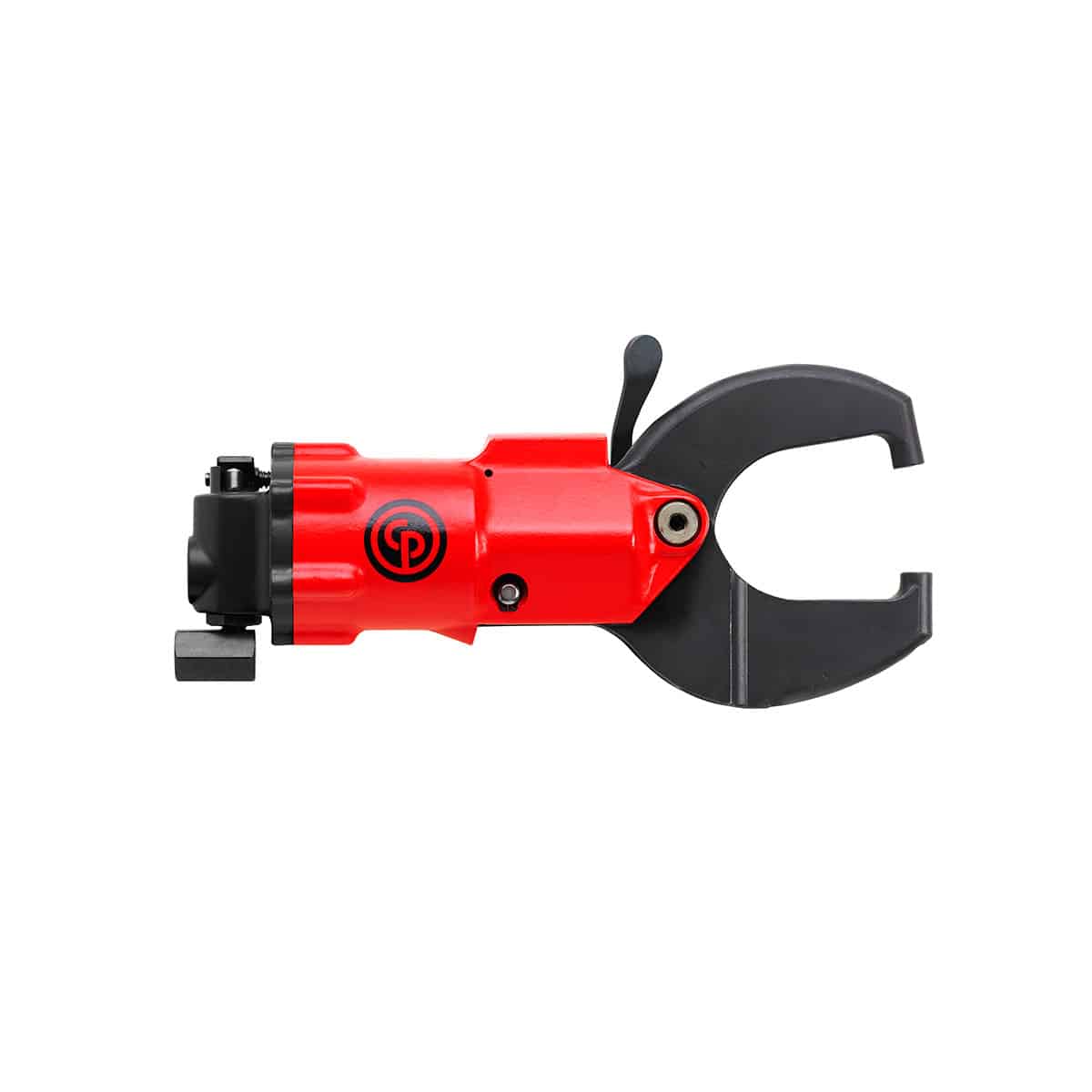

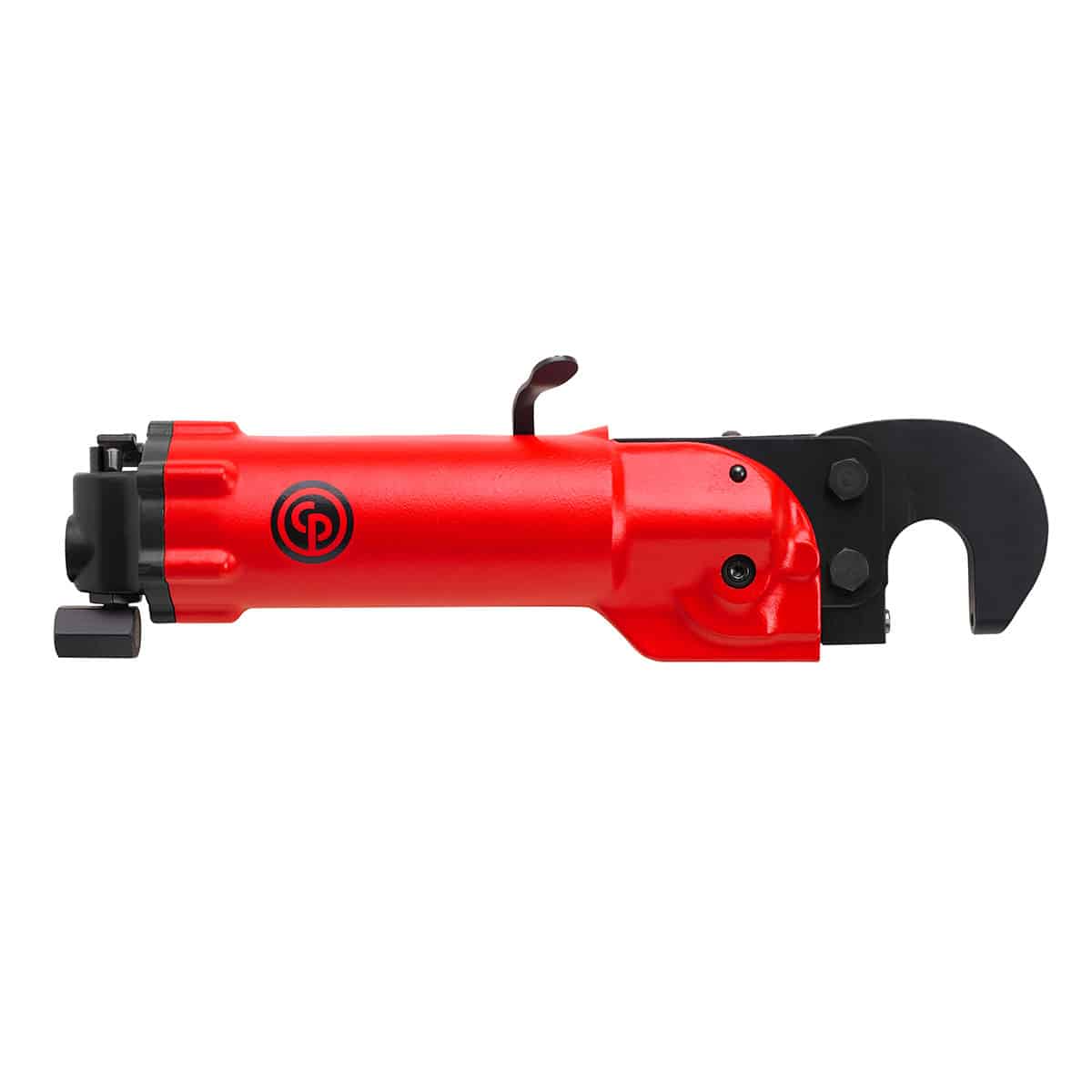

Chicago Pneumatic CP4220AS SQUEEZER

Description CP4220AS CP4220AS – The ergonomic and safe way to do riveting Benefits Smooth operation and almost vibrationless Perfectly adapted for metal structure repair Powerful and robust Features Rivet squeezer with short alligator jaw 1,5 inches (38 mm) reach from edge Swivel inlet for maximum comfort and accessibility Model CP4220AS  Part number 6151710210  Length 284 mm 11.2″ Length 11.2″ 284 mm Net weight 2.2 kg 4.75 lb Net weight 4.75 lb 2.2 kg Height 92 mm 3.6″ Height 3.6″ 92 mm Air inlet thread size 1/4 “ Min. hose size 9.5 mm 3/8″ Min. hose size 3/8″ 9.5 mm Sound pressure 72 db(A) Sound Power 83 db(A) European Sound standard EN ISO 15744  Sound uncertainty 3 db(A) Vibration ISO EN ISO 20643  Vibration <2.5 m/s² Vibration uncertainty (K) 1.6 m/s² Capacity aluminum 3/16″ 4.76 mm Capacity aluminum 4.76 mm 3/16″ Capacity steel 0.15625″ 3.96 mm Capacity steel 3.96 mm 0.15625″ Std yoke dimensions reach 1 1/2″ 38.1 mm Std yoke dimensions reach 38.1 mm 1 1/2″ Max force (90 psi/ 6.2bar) 6000 lb Max force (90 psi/ 6.2bar) 26.68 kN Moving plunger max. travel 0.62″ 15.9 mm Moving plunger max. travel 15.9 mm 0.62″ Moving plunger final part of stroke at max. force 0.05″ 1.3 mm Moving plunger final part of stroke at max. force 1.3 mm 0.05″ European Directives 2006/42/EC (17/05/2006)  European Standards EN ISO 11148-10 : 2011  Air inlet thread type NPT
